Feature / SFC / GRAFCET Editor
The visual SFC / GRAFCET editor for modern engineers

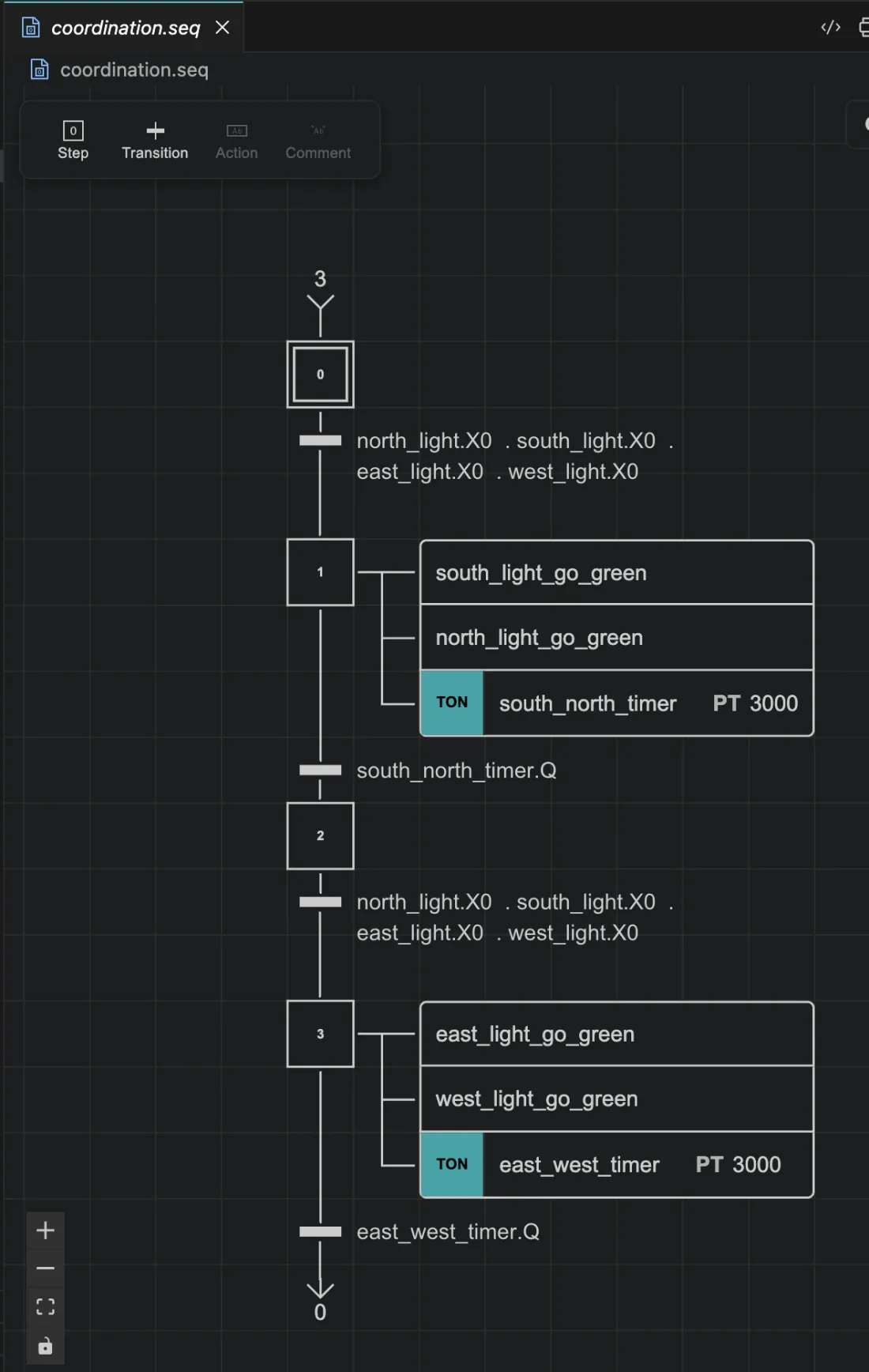

Draw steps, transitions, and actions on a clean canvas built on IEC 61131-3 SFC and NF EN 60848 GRAFCET principles, while your code stays in sync in real time.
SFC / GRAFCET Editor
What you get
01
Standards-based design
Build sequences on proven SFC (IEC 61131-3) and GRAFCET (NF EN 60848) foundations, with full support for IEC 61131-3 action qualifiers and structured step-transition logic.
02
Real-time code sync
Every change to your sequence instantly updates the Python code behind it, so your design and your code never drift apart.
03
Intelligent diagnostics
Catch problems early with deadlock detection, unreachable-step analysis, and conflict identification built directly into the editor.
See it in action

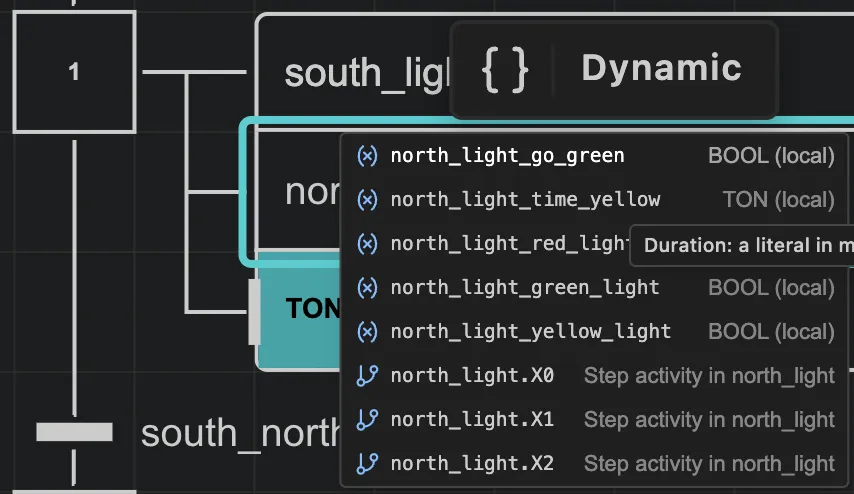

Yes. Variable management with address mapping is built in, along with smart completion for conditions and actions.
